Bch Starters
1-Phase DOL with 2P CPG Contactor & 2P Overload Relay
HSN CODE : 8536
| Cat Code | HP / KW at 1Ø, 220V, 50Hz | Overload Relay Range (A) | Contactor Type | Contactor Rating | MRP[₹] |
|---|---|---|---|---|---|
| NAAEBW-SP | - | 1.07 - 1.70 | 2P CPG | 12A | 2790 |
| NAAHBW-SP | 0.75 / 0.55 | 3.8 - 6.0 | 2P CPG | 12A | 2790 |
| NAHBW-SP | 0.75 / 0.55 | 3.8 - 6.0 | 2P CPG | 16A | 2825 |
| NAAJBW-SP | 1 / 0.75 | 6.0 - 9.3 | 2P CPG | 12A | 2790 |
| NAJBW-SP | 1 / 0.75 | 6.0 - 9.3 | 2P CPG | 16A | 2825 |
| NAKBW-SP | 1.5 / 1.10 | 8.9 - 13.5 | 2P CPG | 16A | 2825 |
| NAALBW-SP | 2 / 1.5 | 13.2 - 20.0 | 2P CPG | 20A | 2895 |
| NALBW-SP | 2 / 1.5 | 13.2 - 20.0 | 2P CPG | 25A | 3160 |
| NAMBW-SP | 3 / 2.2 | 17.4 - 24.0 | 2P CPG | 25A | 3210 |
Bch Starters
1- Phase Mini Manual Motor Starter upto 4HP (Surface Mounting)
HSN CODE : 8536
| Cat Code | Recommended HP 1Ø, 240V | Overload Relay Range (A) | MRP[₹] | Cat Code (with UV Coil) | MRP[₹] |
|---|---|---|---|---|---|
| AMLE-10-SP | - | 0.23 - 0.47 | 1445 | AMLEH-10-SP | 1940 |
| AMLE-20-SP | - | 0.46 - 0.80 | 1445 | AMLEH-20-SP | 1940 |
| AMLE-30-SP | 1 / 8 | 0.85 - 1.55 | 1445 | AMLEH-30-SP | 1940 |
| AMLE-40-SP | 1 / 6 | 1.60 - 3.20 | 1445 | AMLEH-40-SP | 1940 |
| AMLE-50-SP | 0.5 / 0.75 | 3.50 - 6.50 | 1445 | AMLEH-50-SP | 1940 |
| AMLE-60-SP | 1 to 2 | 6.80 - 11.7 | 1445 | AMLEH-60-SP | 1940 |
| AMLE-70-SP | 2 to 3 | 11.0 - 20.0 | 1445 | AMLEH-70-SP | 1940 |
Bch Starters

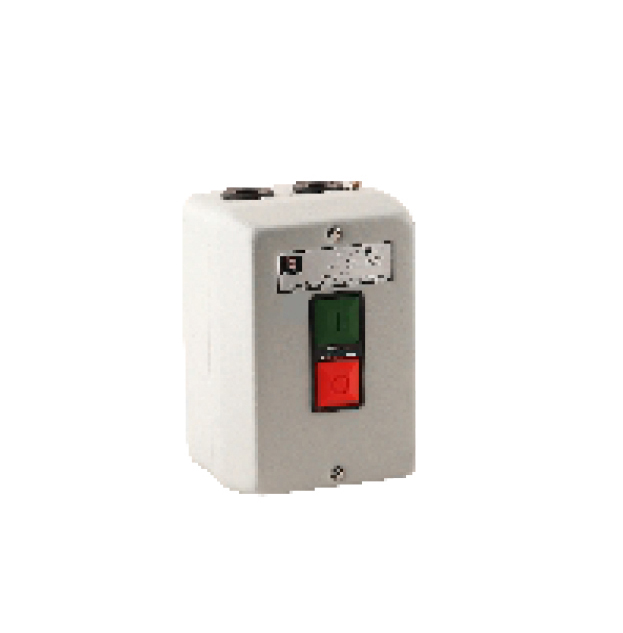

DOL Starter - 3 Phase
HSN CODE : 8536
| Cat. Code | Overload Relay Range (A) | HRC Fuse Rating (EE Type) (max) | MRP[₹] |
|---|---|---|---|
| OISWPGT | 2.4 - 3.8 | 16A | 3660 |
| OISWPHT | 3.8 - 6.0 | 20A | 3660 |
| OISWPJT | 6.0 - 9.3 | 25A | 3660 |
| OISWPKT | 8.9 - 13.5 | 36A | 3660 |
| OISWPLT | 13.2 - 20.0 | 50A | 3730 |
| OISWPMT | 17.4 - 24.0 | 63A | 4040 |
Note : The last alphabet in the Cat No. indicates coil voltage : N-380-415VAC ; T-220-400VAC ; Y-240-400VAC
Bch Starters

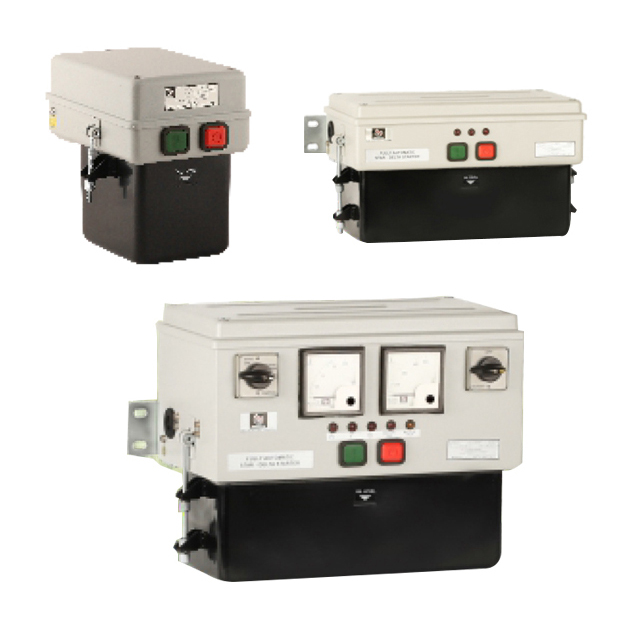

Citation Submersible Pump Starter with 3-Position Selection (with Auto Switch) with or without MCB option
DOL (3-Ph)
HSN CODE : 8536
| Overload Relay Range (A) | Contactor Type | Contactor Rating |
DOL (without Short Circuit Protection) |
Premium DOL (with Short Circuit Protection) MCB |
||
|---|---|---|---|---|---|---|
| Cat Code | MRP[₹] | Cat Code | MRP[₹] | |||
| 1.58 - 2.50 | C00N | 16 A | CPEYNAFN | 9065 | -- | |
| 2.4 - 3.8 | C00N | 16 A | CPEYNAGN | 9065 | -- | |
| 3.8 - 6.0 | C00N | 16 A | CPEYNAHN | 9065 | -- | |
| 6.0 - 9.3 | C00N | 16 A | CPEYNAJN | 9065 | CPPYNAJN | 12875 |
| 8.9 - 13.5 | C00N | 16 A | CPEYNAKN | 9065 | CPPYNAKN | 12875 |
| 13.2 - 20.0 | C00N | 16 A | CPEYNALN | 9715 | CPPYNALN | 13775 |
| 17.4 - 24.0 | N0N | 25 A | CPEYNAMN | 10550 | CPPYNAMN | 15235 |
| 23.0 - 32.0 | N01N | 32 A | CPEYNA01PN | 12015 | -- | |
