Building and Commercial, Waste Water Solutions

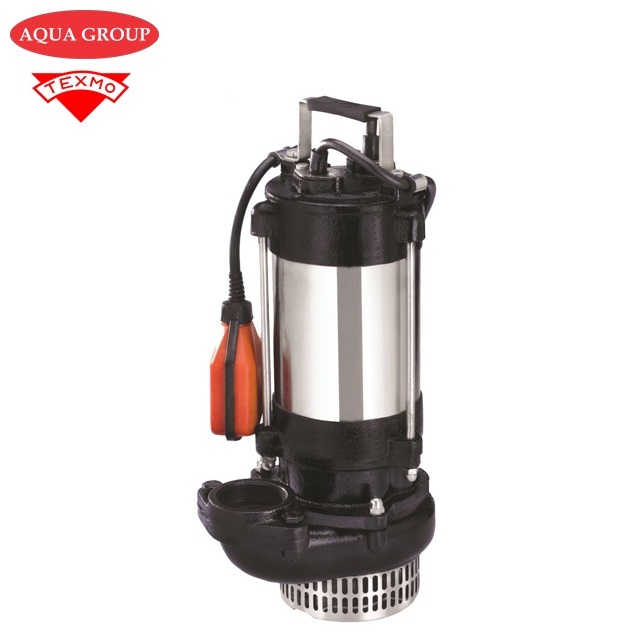

Submersible Dewatering Pumps


Driven by dry type submersible motors, “AQUATEX” dewatering pumps are virtual workhorses that can take on the toughest chores. Ideal for draining flooded basements and storm water drains as well as other high discharge applications.

Head range upto 25m
Delivery size 50 mm to 75 mm
  • 0.5 HP to 3.0 HP, 1Phase, 220 V, 50Hz
  • 1.0 HP to 3.0 HP, 3Phase, 380 V, 50Hz
Speed 2850 rpm
Liquid Temperature upto 35°C
Solid handling sizes 8 mm to 10 mm
  • Pumping waste water in Residential apartments, Multistorey buildings
  • Pumping waste water in Hotels, restaurants and hospitals
  • Waste water without solids
  • Sump drainage
  • Waste water treatment plants
  • Flood water pumping
  • Dry type submersible induction motor
  • Class “F” insulation
  • Shaft and fasteners are in stainless steel to enhance life
  • Impeller and casing are coated with chemical resistance coating to improve life and performance
  • Cable connectors filled with resin prevents water leakage into the motor through the cable wire
  • Dual mechanical seal prevents water entry into the dry motor portion at two interfaces, one at pump portion to oil chamber and another at oil chamber to dry motor portion
  • Open type impeller prevents clogging of small solids and allows sand and silt to pass through.
  • Solid handling size up-to 10 mm
  • Built-in miniature thermal overload protector prevents coil from burning out due to improper line voltage, impeller jam and high temperature etc.,
