Domestic Pumps
Self Priming Mini Monoblocks

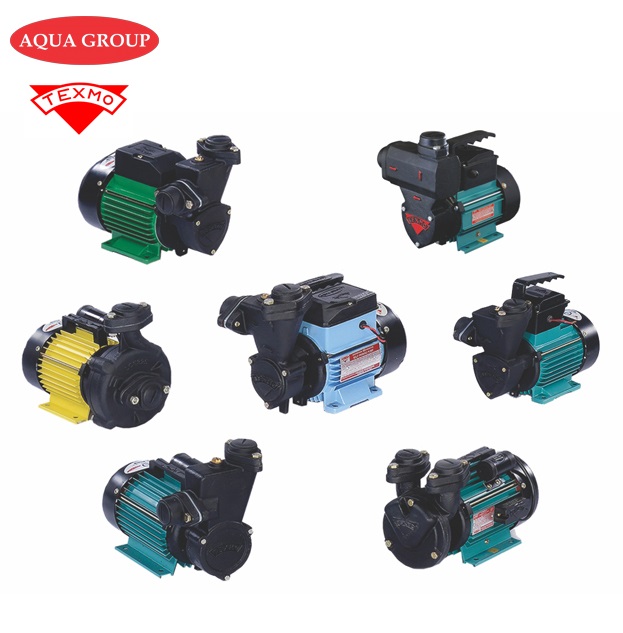

AQUAGROUP’S “TEXMO” SINGLE PHASE SELF PRIMING MINI-MONOBLOCK Pumps are rugged in construction and efficient. They are manufactured with stringent quality control at all stages to provide higher efficiency and reliability
| PARTICULARS | DETAILS |
|---|---|
| Power Range | 0.5HP to 1.0HP |
| Voltage Range | 200V- 240V, 50Hz, AC Single phase |
| Speed | 2800 RPM |
| Motor Type | High Torque Capacitor start & Capacitor Run motor |
| Head | Maximum 56 Meters |
| Discharge | Maximum 4000 lph |
| Model | HP/kW | Pipe Size (mm) | Maximum Head (Meters) | Maximum Discharge (LPH) |
|---|---|---|---|---|
| SHR2 | 0.5 / 0.37 | 25 X 25 | 36 | 2450 |
| SHR2A | 0.5 / 0.37 | 25 X 25 | 30 | 2100 |
| SHR3 | 0.5 / 0.37 | 25 X 25 | 36 | 2900 |
| CHR3 | 0.5 / 0.38 | 26 X 25 | 36 | 2900 |
| SHR4 | 1.0 / 0.75 | 25 X 25 | 45 | 3050 |
| AQUAMINI-2 | 0.5 / 0.37 | 25 X 25 | 30 | 2550 |
| AQUAGOLD-2 | 0.5 / 0.37 | 25 X 25 | 30 | 2700 |
| AQUAMAX-2 | 0.5 / 0.37 | 25 X 25 | 30 | 3100 |
| AQUAMINI-2 Jr | 0.5 / 0.37 | 25 X 25 | 24 | 1950 |
| AQUAMINI-2 Jr STAR | 0.5 / 0.37 | 25 X 25 | 24 | 1950 |
| AQUAGOLD-4 | 1.0 / 0.75 | 25 X 25 | 48 | 4000 |
| CHR5 | 1.0 / 0.75 | 25 X 25 | 45 | 3230 |
- Domestic water supply
- Water transfer from underground sump to overhead tanks in Residential houses and Apartments
- Domestic Pressure Boosting
- High pressure curing water supply at construction sites
- Lawn and Garden watering
- Suitable for portable application
- Rugged Single Phase TEFC motor construction
- Sturdy extruded / Die casted/ Cast iron Motor frame
- Rigid & Accurate cast iron castings
- Capacitor arrangement inside of Terminal box in Die-casted frames
- Permanent split capacitor for design for better reliability
- In-built Thermal Overload Protector (T.O.P)
- In-built Non-Return Valve (N.R.V)
- Easy to install and need simple maintenance
- Portable and light weight in construction
- Better aesthetic look with powder coated finish
- Performance certified by BIS with ISI marking
| PARTICULARS | DETAILS |
|---|---|
| Stator Frame | Aluminium Extruded/ Aluminium Die-casted/ Cast Iron |
| Bearings | Double shielded Deep Groove Ball Bearings |
| Casing & Bracket | Cast iron |
| Shaft | Stainless Steel |
| Impeller | Forged Brass |
| Mechanical seal | Carbon Vs Ceramic Mechanical seal |
