Hydro Pneumatic Systems

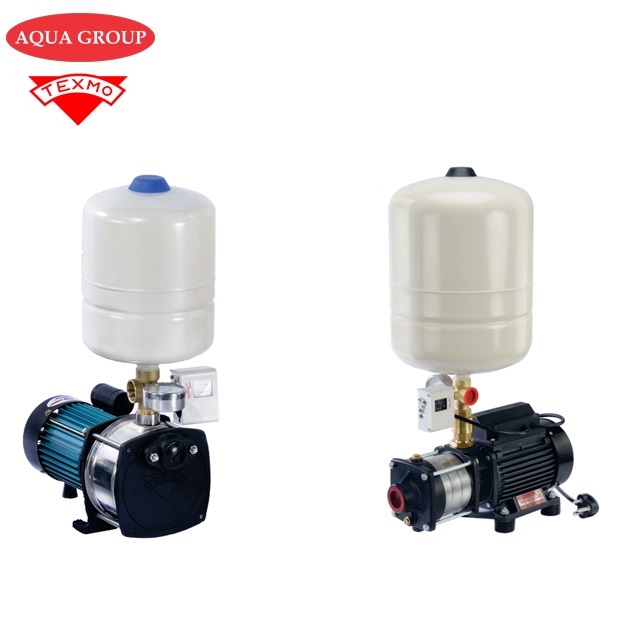

“AQUATEX” Domestic Pressure Booster System delivers water with uniform and constant pressure pumps in all Outlets – showers, taps, etc both on ground floor as well as top floor of the buildings. The Pressure switch monitors the pressure in the system and it will switch the pumpset ON and OFF automatically based on demand. The system is supplied with Horizontal Multistage Stainless Steel Pumps (AHS Series) or Shallow Well Jet Pumps (TSJ Series). The system consists of high quality pressure tank, pressure switch and other accessories.
| PARTICULARS | DETAILS |
|---|---|
| Power Input Range | 0.37 kW to 1.5 kW |
| Power supply | Single phase 230 V, 50 Hz AC supply |
| Motor | Capacitor run motor, TEFC type |
| Speed | 2900 RPM |
| Degree of Protection | IP 54 |
| Class of Insulation | ‘F’ Class |
| Flow rate | upto 7.5 m3/hr |
| Head | upto 72 m |
| Liquid temperature | Maximum 55º C |
| Suction lift | Maximum 7 m |
| Operating pressure | Maximum 7 Bar |
- Domestic Pressure Boosting applications
- Pressure Boosting Applications Multistory Buildings, Residential Apartments, Hotels etc
- Lawn sprinklers, Fountains and Small Farm irrigation.
- Proven Performance and Durability
- Reliability, Rugged and Compact in construction
- Energy efficient motors
- Noiseless Operation
- Low power Consumption
- Automatically ON and OFF (Based on demand of the system when taps are opened and closed)
- Ease in maintenance
- Eliminate overhead tanks (where uninterrupted power supply is available)
- Horizontal Multistage Centrifugal Pumps and Shallow Well Jet Pressure Pumps are made up of highly corrosion resistant stainless steel, cast iron and gunmetal in all wetted parts like impellers, diffusers, stage casings and shaft.
- The pumps are powered by AC Induction Motors with ‘F’ CLASS Insulation, suitable for continuous duty.
- The motors are TEFC type and built-in with Thermal Overload Protector
- Dynamically balanced rotors ensure vibration free and noiseless Operation.
- The system with High quality Forged Brass 5-way connector and Non Return Valve.
- The system’s Pressure Tank made up of virgin polypropylene liner combined with High Grade Butyl Diaphragm
| PARTICULARS | DETAILS |
|---|---|
| MOTOR | |
| Motor body | Cast Iron / Aluminum |
| Rotor shaft | Stain less Steel |
| PUMP | |
| Pump shaft | Stainless steel |
| Diffuser | Stainless steel / Cast Iron |
| Stage casings | Stainless steel |
| Impeller | Stainless steel / Bronze |
| Sealing arrangements | Mechanical seal |
| Cover dome | Cast Iron / Stainless Steel |
| Suction bracket | Cast Iron / Stainless Steel |
| SYSTEM ASSEMBLY | |
| Five way Connector | Brass |
| Non Return Valve | Brass |
| Pressure Tank | MS EXPOXY Coated with High Grade Butyl Rubber |
| Pressure Switch | Fitted with Single Pole Double Throw Switch |
| Pressure Gauge | Bourdon Type |
