Domestic Pumps
Shallow Well Jet Monoblocks

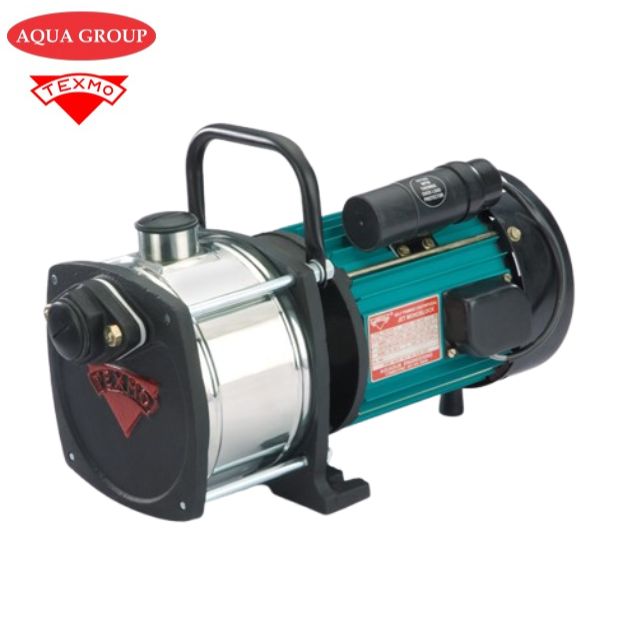

AQUAGROUP’S “TEXMO” Single phase Self priming Monoblock Pumpsets are designed for easy installation, simple maintenance and trouble free service. These products are versatile, light weight and reliable for long time when properly installed and operated as per the company recommendations
| PARTICULARS | DETAILS |
|---|---|
| Power Range | 0.5HP to 1.0HP |
| Voltage Range | 180V- 240V, 50Hz, AC Single phase |
| Speed | 2880 RPM |
| Motor Type | Capacitor star and run motor TEFC type |
| Head | Maximum 40M |
| Discharge | Maximum 60LPM |
| Operating Pressure | Maximum 10 bar |
- Domestic pressure boosting applications
- All applications requiring Self priming action up to 8 metres
- Car washing
- Overhead storage water tank filling
- Drip and Sprinkler applications for farms and gardens.
- Rugged single phase TEFC construction
- Suitable for 180 -240 V, 50 Hz ,AC power supply
- In- built jet creates more suction than other models
- In-built non return valve
- Excellent performance in low voltage
- Carbon Vs Ceramic mechanical seal
| PARTICULARS | DETAILS |
|---|---|
| Stator Frame | Aluminium |
| Bearings | Deep groove ball bearings |
| Rotor shaft | Stainless Steel |
| Casing | Stainless Steel / Cast Iron |
| Cover dome / bracket | Cast Iron |
| Impeller | Engineering Plastic |
| Sealing Arrangements | Carbon Vs Ceramic – Mechanical seal |
