Jet Pumps

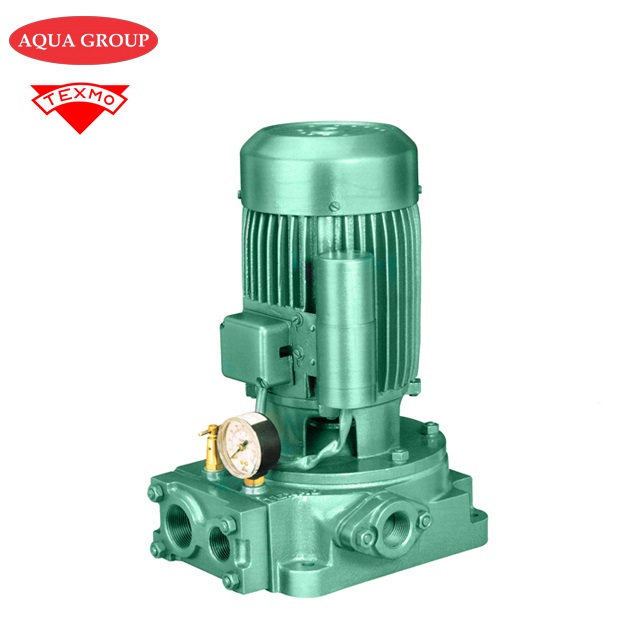

AQUAGROUP’S “TEXMO” Jet Monoblocks are capable of pumping water from bore wells and open-wells and offer a economical alternative to Submersible Pumps. They are available in both “Side-suction” and “Bottom- suction” models.
| PARTICULARS | DETAILS | ||
| THJ | TVJ / TVJ N | TVJ2S | |
| Bore size min | 3″/ 4″ / 4.5″ and above | ||
| Power Range | 1.0 HP to 1.5 HP | 0.5 HP to 2.0 HP | 1.0 HP to 2.0 HP |
| Voltage Range | 180V- 240V, 50Hz, AC Single phase | ||
| Motor type | Capacitor run type motor TEFC type | ||
| Speed | 2900 RPM | ||
| Suction Lift | Maximum 50 M | Maximum 61 M | Maximum 77 M |
| Discharge | Maximum 2383 LPH | Maximum 2500 LPH | Maximum 1200 LPH |
| Mounting | Horizontal | Vertical | Vertical |
| Operating Pressure | Maximum 10 bar | Maximum 15 bar | Maximum 15 bar |
| No. of stages | One | One | Two |
- Pumping water from well / bores where suction depth exceeds 30 feet
- Operates up to 250 feet of water level .
- Water supply to commercial establishments like Hotels, Lodges and Hospitals
- Water supply to commercial establishments like Hotels, Lodges and Hospitals
- In case of collapsible bore, Jet pump will be better option since pump set is erected outside it will not stuck in the bore.
- Can be easily erected over the borewell or erected inside the building away from the borewell for improved security
- Servicing can be done with ease at lower cost as the monoblock is accessible at the surface
- When used in openwells the monoblock is protected from variation of water level as it can be fixed on ground level, so no need to change the position of the pump
| PARTICULARS | DETAILS | ||
| THJ | TVJ / TVJ N | TVJ2S | |
| Frame | Cast Iron | Cast Iron | Cast Iron |
| Shaft | Carbon Steel | Carbon Steel | Carbon Steel |
| Casing | Cast Iron | Cast Iron | Cast Iron |
| Cover dome | Cast Iron | Cast Iron | Cast Iron |
| Jet Unit Assembly | Bronze | Bronze | Bronze |
| Impeller | Bronze | Bronze | Bronze |
